Santino Vision 5 FM MX6
Highlights
GraphicsGC320 2D accelerator + GC880 3D accelerator
MemorySoldered on Board DDR3L memory
Security & Compliance by Design
SECO products integrate security functions that enable out-of-the-box compliance with the RED directive [EN18031-1]. Certification documentation is available upon request. Security monitoring, patching and update automation are powered by Clea.
Secure Boot
Built-in Secure Boot to ensure system integrity from the first startup.
OTA Updates
Remote and secure software update distribution for your devices.
Device Monitoring
Continuous monitoring of device status and activity with Clea.
Secure Operating System
Yocto-based OS integration for customizable and secure system builds.
Certified Security
Compliance with EN18031-1 standards for secure and reliable embedded systems.
Docker Technology
Isolated and flexible application management through containerization.
Applications Hub
Scopri le applicazioni compatibili con questo prodotto disponibili su SECO Application Hub: soluzioni pronte all’uso per accelerare lo sviluppo e l’implementazione di funzionalità intelligenti.
Machine Alert Assistance with Operator Recognition
HMI system that uses AI to recognize operators during alerts and show personalized troubleshooting instructions.
People Counter
Lightweight real-time people counting model based on quantized YOLOX, optimized for edge devices using LiteRT (TensorFlow Lite) .
PoseNet for Multi-Person Pose Detection
Lightweight and quantized PoseNet model for real-time multi-person pose estimation on edge hardware.
HRNet for Human Pose Estimation
High-resolution neural network for accurate keypoint detection in human pose estimation tasks.
Descrizione
|

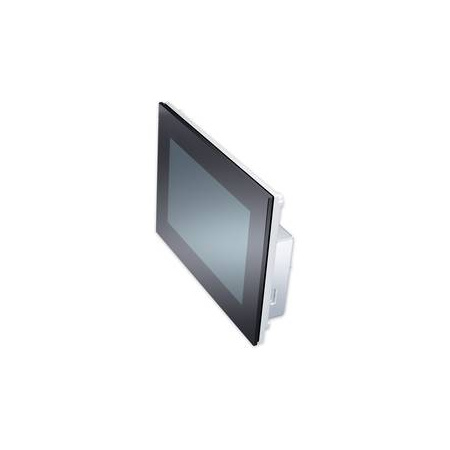

Our entry into the world of Flush Mount Human Machine Interfaces for completely flush and seamless integration into the overall system. The stylishly designed control unit based on our SBC-SANTINOLT-MX6 series offers you maximum design flexibility with the usual "by Garz & Fricke" quality. The high-resolution, capacitive touch display can optionally be operated in High Brightness mode and thus offers good readability even in direct sunlight. The integrated threads make it easy to install the HMI in your device and the integrated seal provides a high degree of protection. The well thought-out construction of our Flush Mount devices offers many possibilities of individualization, please contact us for further information. |
|---|---|
CPU Description
|
NXP i.MX 6 Family, based on ARM® CORTEX-A9 processors:
|
Memory Description
|
1 GB 32 bit DDR3L |
Graphics Description
|
2D graphics accelerator |
Video Resolution Description
|
5.0 inch display, resolution 800 x 480, LED lifetime typ. 50k hours |
|
Mass Storage Description
|
eMMC: 4 GB MLC |
Networking Description
|
1x 100MbEthernet |
USB Description
|
1x USB 2.0 OTG micro-AB |
Audio Description
|
1x speaker (connector), 1 W RMS (8Ω) parallel to internal speaker |
Serial Ports
|
RS-232, RS-485 |
Power Supply
|
9 ÷ 32 VDC |
Operating System
|
Yocto |
Operating Temperature Description
|
0°C ÷ +60°C |
Dimensions
|
145.5 x 102.4 x 33.4 mm |
