zh EVAL-KIT-SOM-SMARC-QCS6490
EVAL-KIT-SOM-SMARC-QCS6490
Disponibile

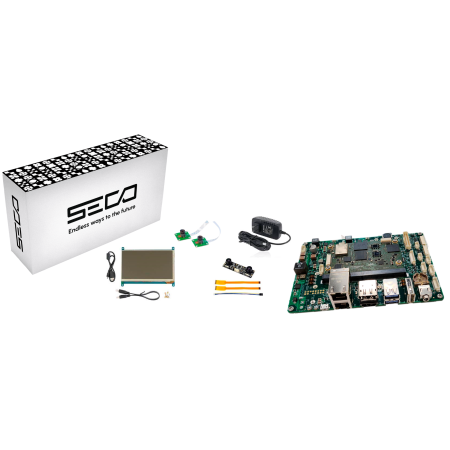

Evaluation Kit in 3.5" based on Qualcomm QCS6490 SoC
0,00 USD
Highlights
CPUPowered by Qualcomm® QCS6490 processor: 1x Arm® Cortex®-A78 @2.7 GHz 3x Arm® Cortex®-A78 @2.4 GHz 4x Arm® Cortex®-A55 @1.8 GHz NPU up to 13 TOPs
GraphicsQualcomm® Adreno™ 643
MemorySoldered-down LPDDR5-6400, up to 12GB total, 32-bit interface 2 channels
Connectivity2x Gigabit Ethernet interfaces
GraphicsQualcomm® Adreno™ 643
MemorySoldered-down LPDDR5-6400, up to 12GB total, 32-bit interface 2 channels
Connectivity2x Gigabit Ethernet interfaces
Security & Compliance by Design
SECO products integrate security functions that enable out-of-the-box compliance with the RED directive [EN18031-1]. Certification documentation is available upon request. Security monitoring, patching and update automation are powered by Clea.
Secure Boot
Built-in Secure Boot to ensure system integrity from the first startup.
OTA Updates
Remote and secure software update distribution for your devices.
Device Monitoring
Continuous monitoring of device status and activity with Clea.
Secure Operating System
Yocto-based OS integration for customizable and secure system builds.
Certified Security
Compliance with EN18031-1 standards for secure and reliable embedded systems.
Docker Technology
Isolated and flexible application management through containerization.
Descrizione
|
In a 3.5" form-factor and including mPCIe and M.2 expansion slots, this kit accelerates development of IoT and Edge AI products and can easily be used for rapid proof of concept implementation. |
|---|---|
CPU Description
|
Powered by Qualcomm® QCS6490 processor: 1x Arm® Cortex®-A78 @2.7 GHz 3x Arm® Cortex®-A78 @2.4 GHz 4x Arm® Cortex®-A55 @1.8 GHz NPU up to 13 TOPs |
Memory Description
|
Soldered-down LPDDR5-6400, up to 12GB total, 32-bit interface 2 channels |
Graphics Description
|
Qualcomm® Adreno™ 643 |
Video Interfaces Description
|
LVDS dual channel 18/24bit, eDP V1.4, MIPI DSI 4 lanes, Display Port through USB 3.1 Type C |
Video Resolution Description
|
Primary display: FHD+ @120 fps Secondary display: up to 4k Ultra HD @60Hz |
|
Mass Storage Description
|
eMMC 5.1 drive soldered on-board, up to 64GB (boot device) SD 4-bit interface (boot device) opt. UFS 2.x/3.1 flash |
Networking Description
|
2x Gigabit Ethernet interfaces |
USB Description
|
2x USB 3.1 ; 2x USB 2.0; USB OTG micro AB |
PCI Description
|
PCIe lanes Gen3: 2 ports x1 lanes, 1 port x2 lanes (QPS615) |
Audio Description
|
1x I2S |
Serial Ports
|
2x UART (RX/TX/RTS/CTS) 2x UART (RX/TX) 1x RS232/422/485 Up to 1x RS232 |
Other Interfaces
|
1xCAN via SPI I2C 1x mPCIe with optional uSIM 1x M.2 Key B with optional uSIM 1x M.2 Key E (intended for WLAN) Ultra Low Power RTC 2xPWM 1x 4-lane, 1x 2-lane MIPI CSI, with ISP support |
|
Sicurezza
|
Optional TPM 2.0 on-board |
|
Power Supply
|
9-24V DC |
Operating System
|
Microsoft Windows 11 IoT Enterprise Yocto (Linux 64 Bit) Android |
Operating Temperature Description
|
0 ÷ +60°C (Commercial Range) -30 ÷ +85°C (Industrial Range) |
Dimensions
|
146 x 102 mm (3.5” form factor, 5.75” x 4.02”) |
