Modular Vision Ultra 15.6

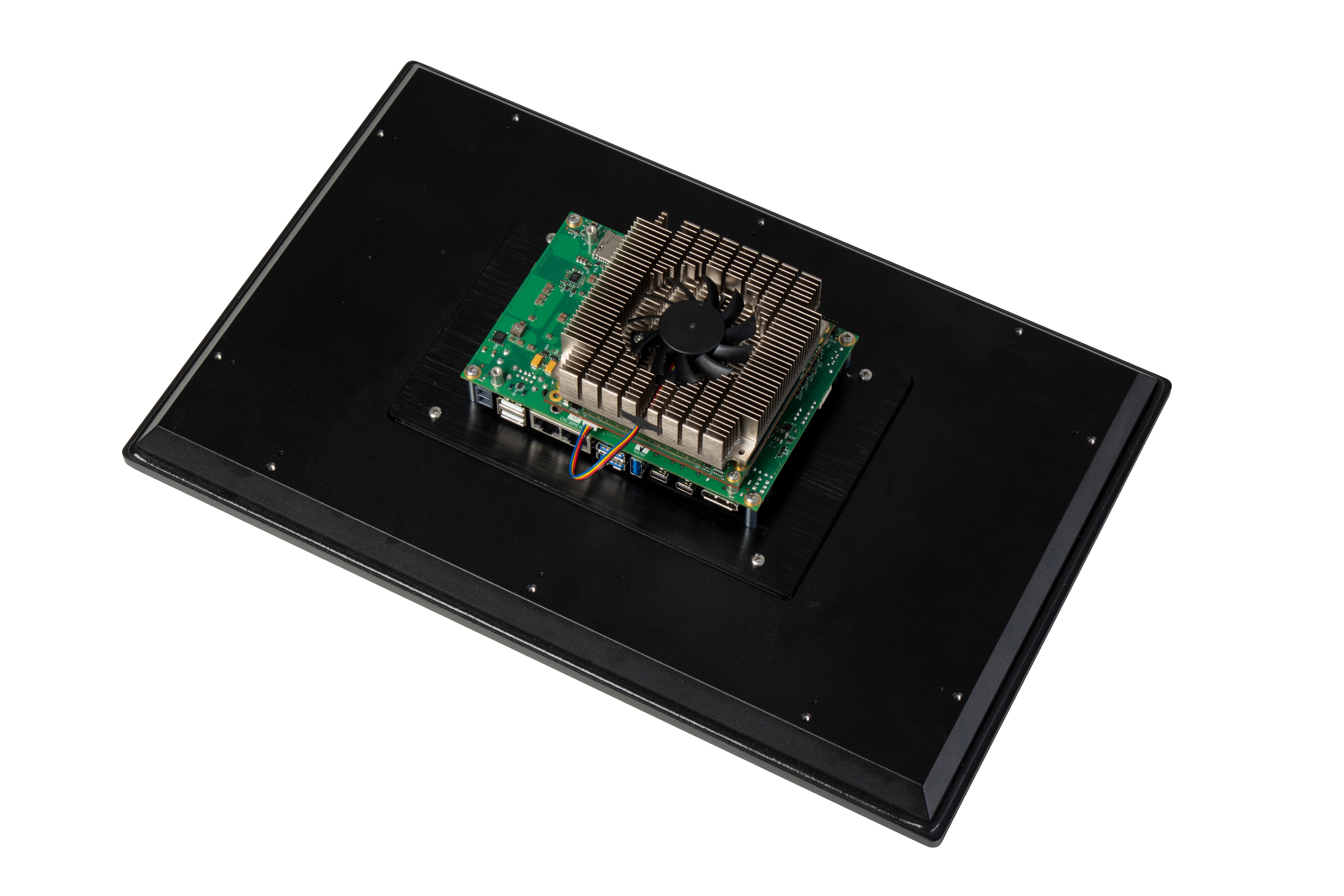

15’’ PCAP IP66 HMI compatible with multiple COM Express Type 6 modules
Security & Compliance by Design
SECO products integrate security functions that enable out-of-the-box compliance with the RED directive [EN18031-1]. Certification documentation is available upon request. Security monitoring, patching and update automation are powered by Clea.
Secure Boot
Built-in Secure Boot to ensure system integrity from the first startup.
OTA Updates
Remote and secure software update distribution for your devices.
Device Monitoring
Continuous monitoring of device status and activity with Clea.
Secure Operating System
Yocto-based OS integration for customizable and secure system builds.
Certified Security
Compliance with EN18031-1 standards for secure and reliable embedded systems.
Docker Technology
Isolated and flexible application management through containerization.
Application Hub
Entdecken Sie die mit diesem Produkt kompatiblen Anwendungen, die im SECO Application Hub verfügbar sind: einsatzbereite Lösungen zur Beschleunigung der Entwicklung und Bereitstellung intelligenter Funktionen.
Machine Alert Assistance with Operator Presence Detection
AI-assisted HMI that detects operator presence during machine alerts and provides contextual troubleshooting information.
People Counter
Real-time people detection and counting for industrial and monitoring applications.
PoseNet for Multi-Person Pose Detection
Lightweight and quantized PoseNet model for real-time multi-person pose estimation on edge hardware.
HRNet for Human Pose Estimation
High-resolution neural network for accurate keypoint detection in human pose estimation tasks.
CPU Description
|
Module to be selected separately. Compatible COM Express Type 6 modules from SECO's portfolio:
|
|---|---|
Video Interfaces Description
|
1 x DisplayPort 2 x Mini DisplayPort Resolution up to 4K (depending on the selected COM Express module) |
Video Resolution Description
|
15.6” display Resolution: 1920 x 1080 LED lifetime: 50K hours Brightness: 400 cd/m² P-Cap (Projected Capacitive) touch screen 3.0 mm chemically strengthened cover glass |
Networking Description
|
Up to 2x power ethernet (depending on the selected COM Express module) |
USB Description
|
2x USB 2.0 type-A sockets 3x USB 3.0 type-A socket |
Other Interfaces
|
PCAP touch IP65 front face Panel mounting brackets included |
|
Power Supply
|
AC/DC Power Supply 24Vdc 120W included |
Operating System
|
Microsoft® Windows 11 IoT Enterprise Clea OS (depending on the selected COM Express module) |
Operating Temperature Description
|
0°C to +50°C * |
Dimensions
|
407.5 x 259.5 x 52.4 mm |
