ru FN1040P023A
FN1040P023A
In stock

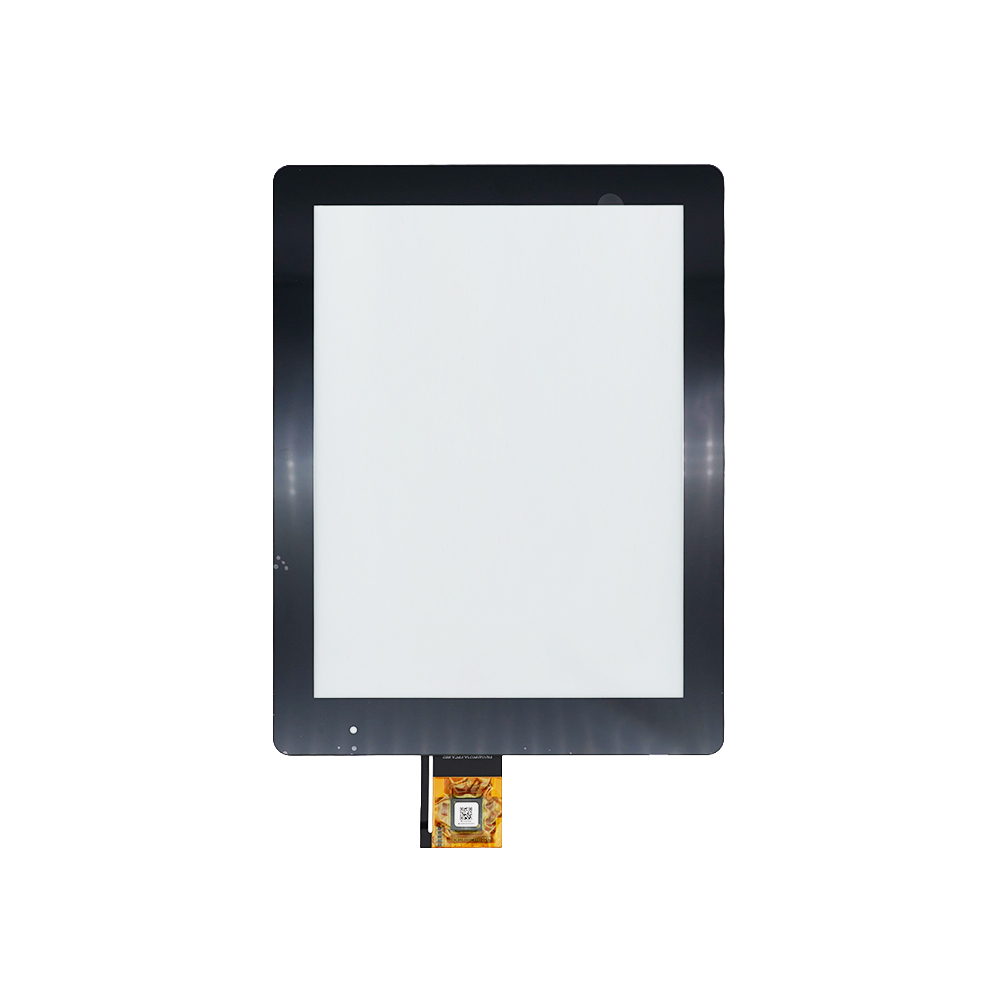

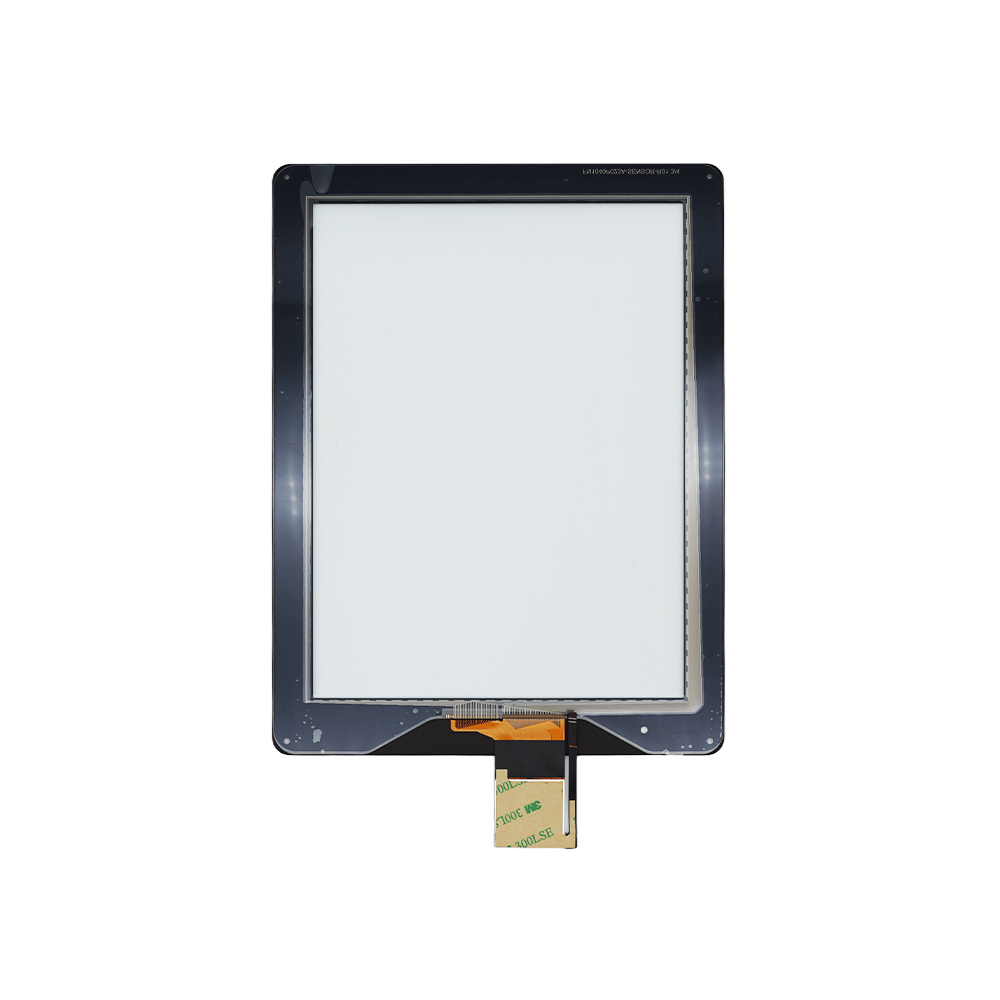

10.4 inch PCAP with Microchip touch controller designed for industrial applications
US$0.00
亮点
Touch screen structureG+G
Cover Thickness (mm)1.8
No.of touch10
Touch InterfaceIIC
Cover Thickness (mm)1.8
No.of touch10
Touch InterfaceIIC
Specifications

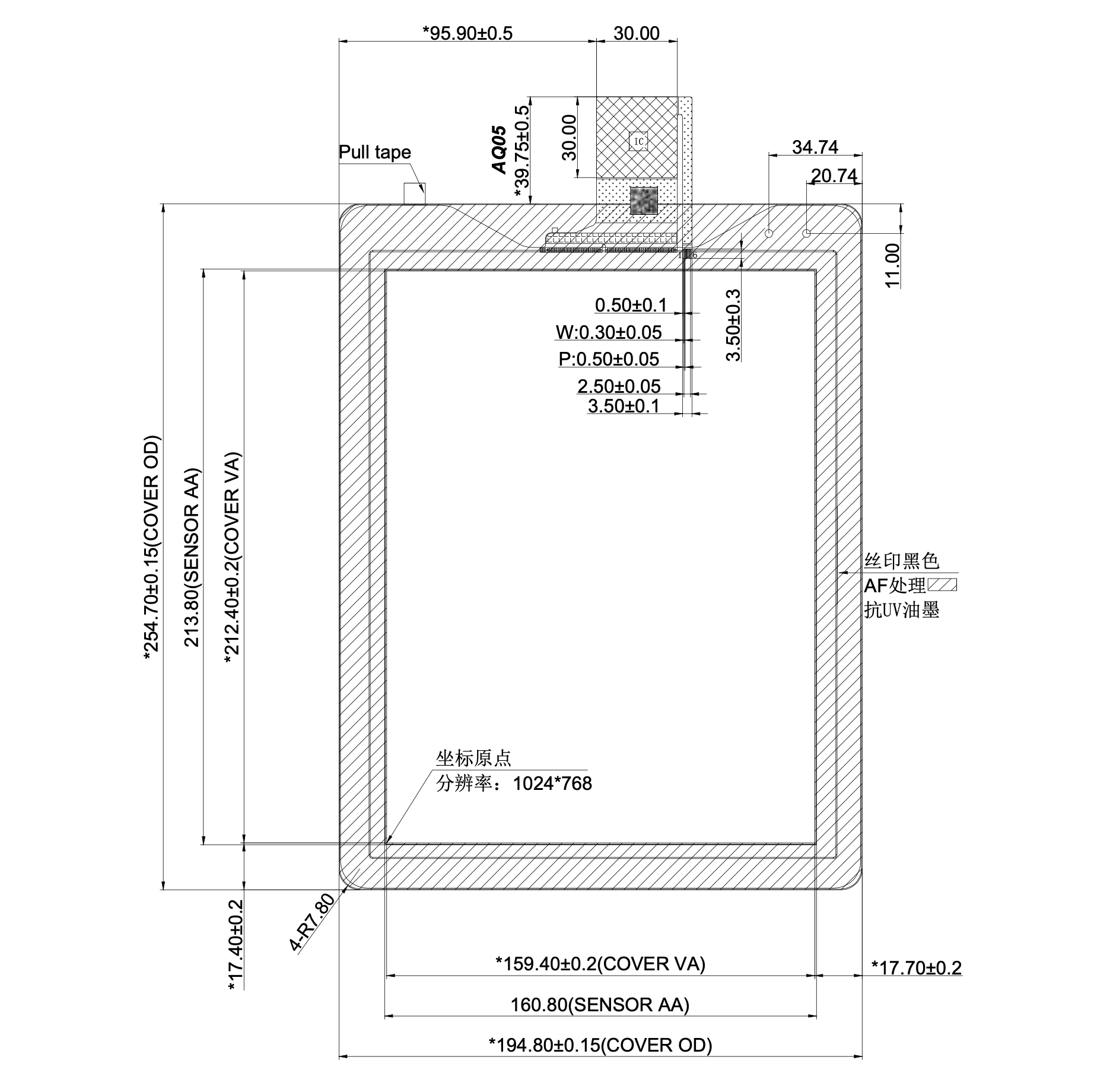

| Size | 10.4 inches |
|---|---|
| Structure | G+G |
| Cover Thickness | 1.8 mm |
| TP Viewing Area | 159.4 × 212.4 mm |
| Cover Outer Dimensions | 194.8 × 254.7 mm |
| Sensor Outer Dimensions | 160.8 × 213.8 × 0.55 mm |
| Interface | IIC |
| Number of Touch Points | 10 |
| CTP IC | Microchip |
| Operating Temperature | −30°C to +70°C |
| Storage Temperature | −40°C to +80°C |
| Matching TFT | Can be selected |
Security & Compliance by Design
SECO products integrate security functions that enable out-of-the-box compliance with the RED directive [EN18031-1]. Certification documentation is available upon request. Security monitoring, patching and update automation are powered by Clea.
Secure Boot
Built-in Secure Boot to ensure system integrity from the first startup.
OTA Updates
Remote and secure software update distribution for your devices.
Device Monitoring
Continuous monitoring of device status and activity with Clea.
Secure Operating System
Yocto-based OS integration for customizable and secure system builds.
Certified Security
Compliance with EN18031-1 standards for secure and reliable embedded systems.
Docker Technology
Isolated and flexible application management through containerization.
