ru FN1025D002A
FN1025D002A
In stock

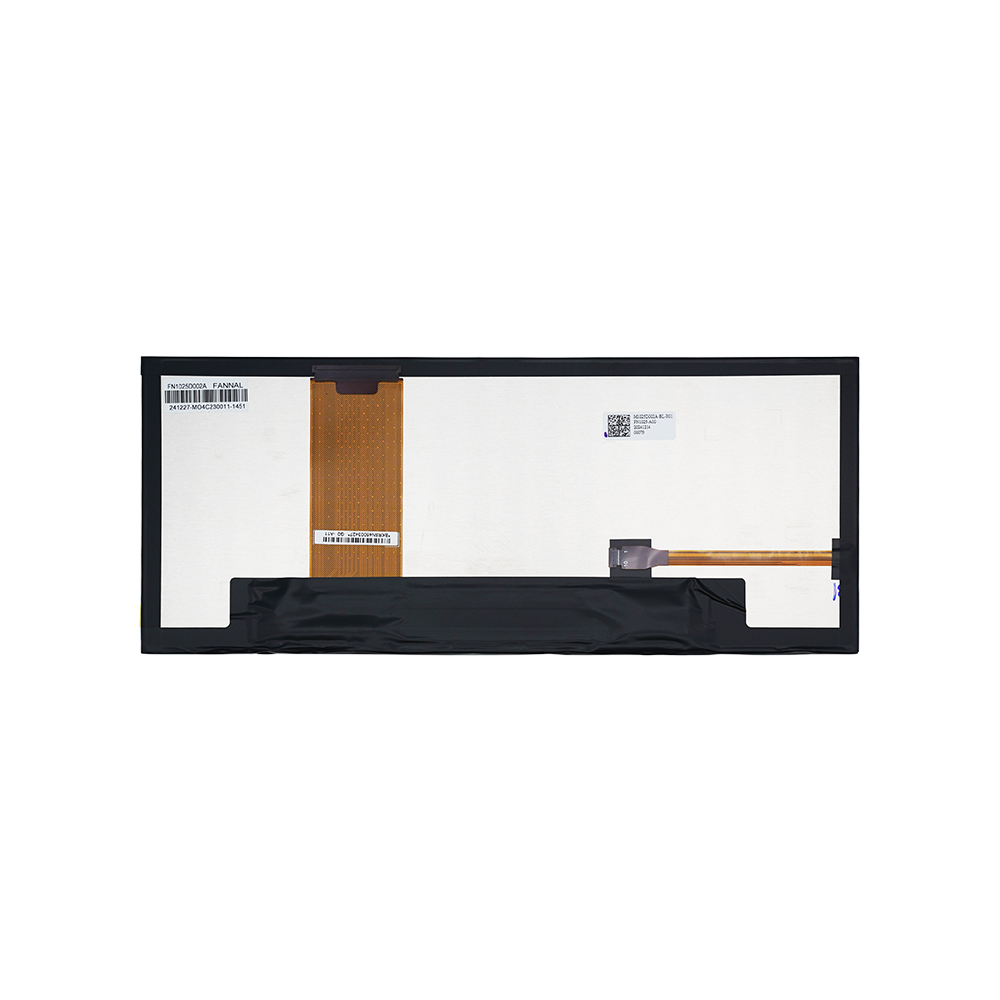

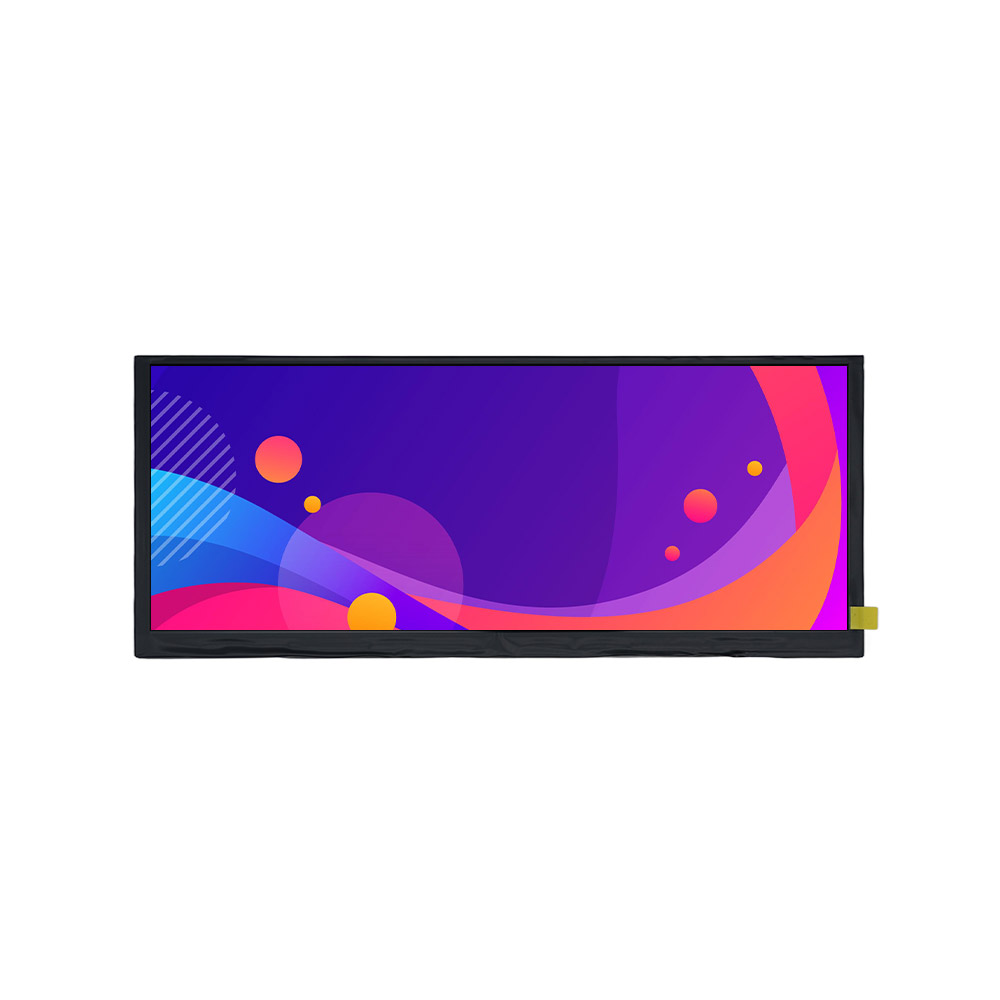

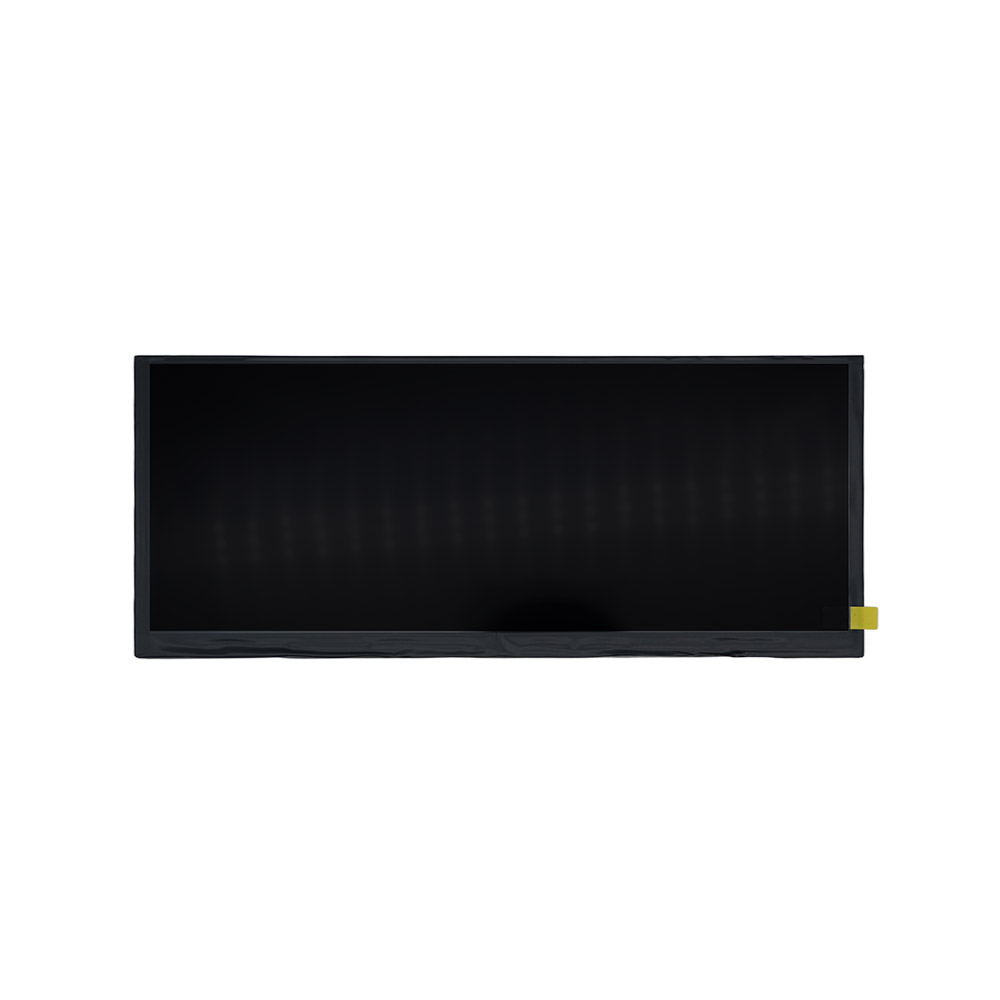

10.25 inch Outdoor TFT Display Resolution 1280 x 480 IPS LCD
US$0.00
亮点
Resolution1280 x 480
Display AA (mm)91.44 x 243.84
View DirectionAll
Display InterfaceLVDS
Brightness (cd/m2)1000
Display AA (mm)91.44 x 243.84
View DirectionAll
Display InterfaceLVDS
Brightness (cd/m2)1000
Specifications

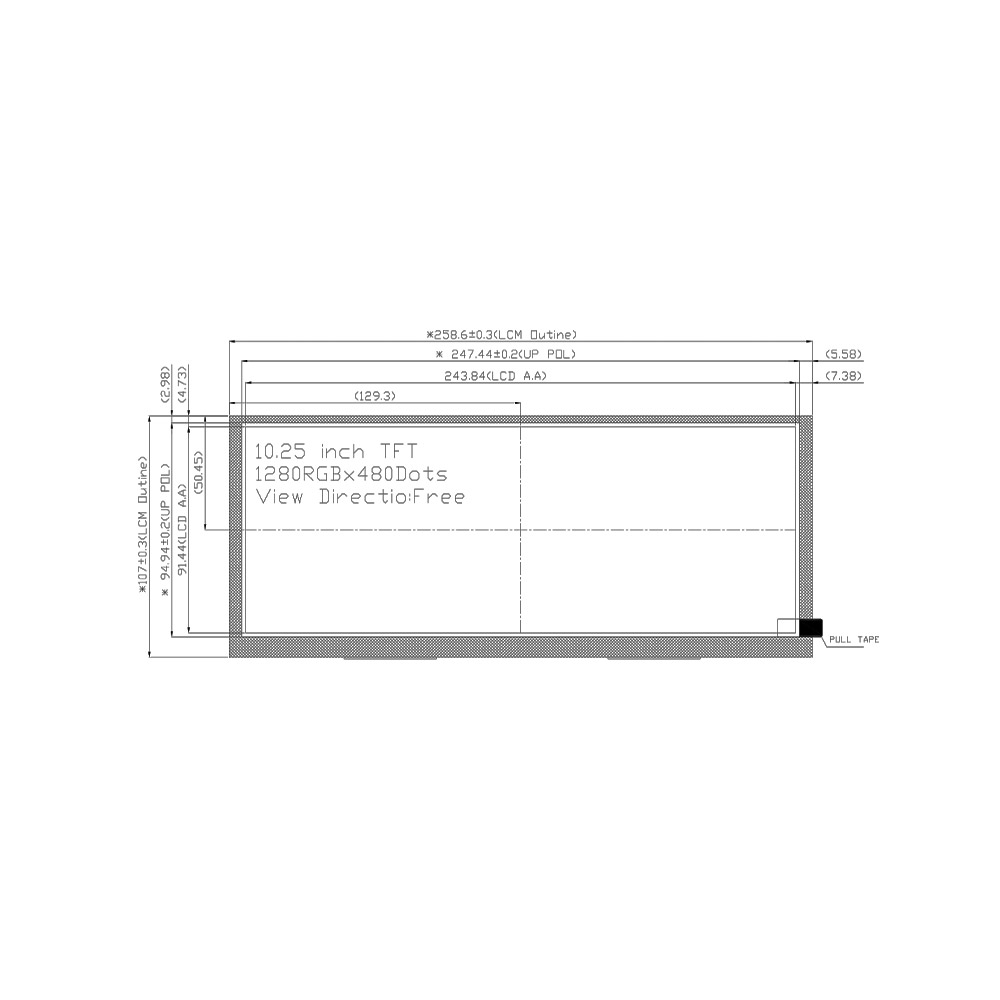

| LCD Size | 10.25 inches |
|---|---|
| Resolution | 1280 × 480 |
| Active Area | 243.84 × 91.44 mm |
| Module Size | 258.6 × 107 × 6.36 mm |
| Interface | LVDS |
| View Direction | All directions |
| Brightness | 1000 cd/m² typical |
| Operating Temperature | −30°C to +85°C |
| Storage Temperature | −40°C to +90°C |
| Matching CTP | Can be selected |
Security & Compliance by Design
SECO products integrate security functions that enable out-of-the-box compliance with the RED directive [EN18031-1]. Certification documentation is available upon request. Security monitoring, patching and update automation are powered by Clea.
Secure Boot
Built-in Secure Boot to ensure system integrity from the first startup.
OTA Updates
Remote and secure software update distribution for your devices.
Device Monitoring
Continuous monitoring of device status and activity with Clea.
Secure Operating System
Yocto-based OS integration for customizable and secure system builds.
Certified Security
Compliance with EN18031-1 standards for secure and reliable embedded systems.
Docker Technology
Isolated and flexible application management through containerization.
