ru FN1010T036A
FN1010T036A
In stock

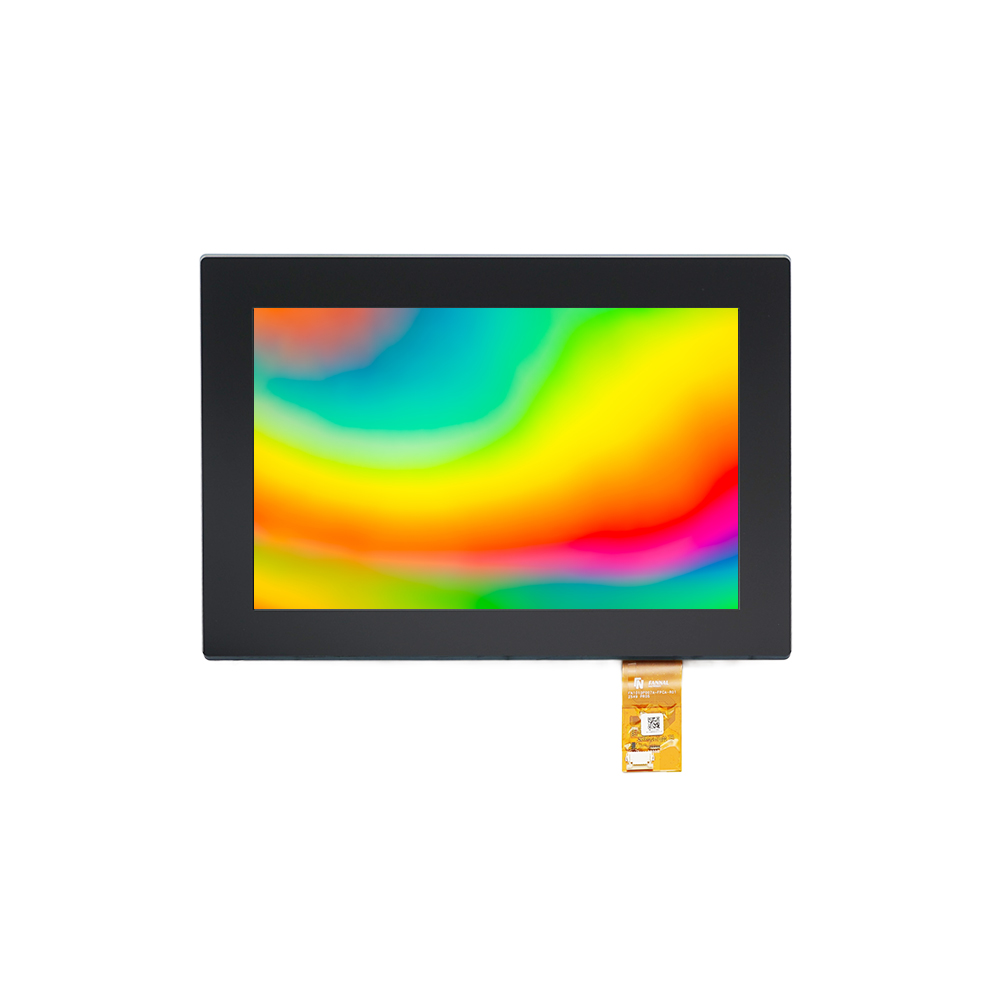

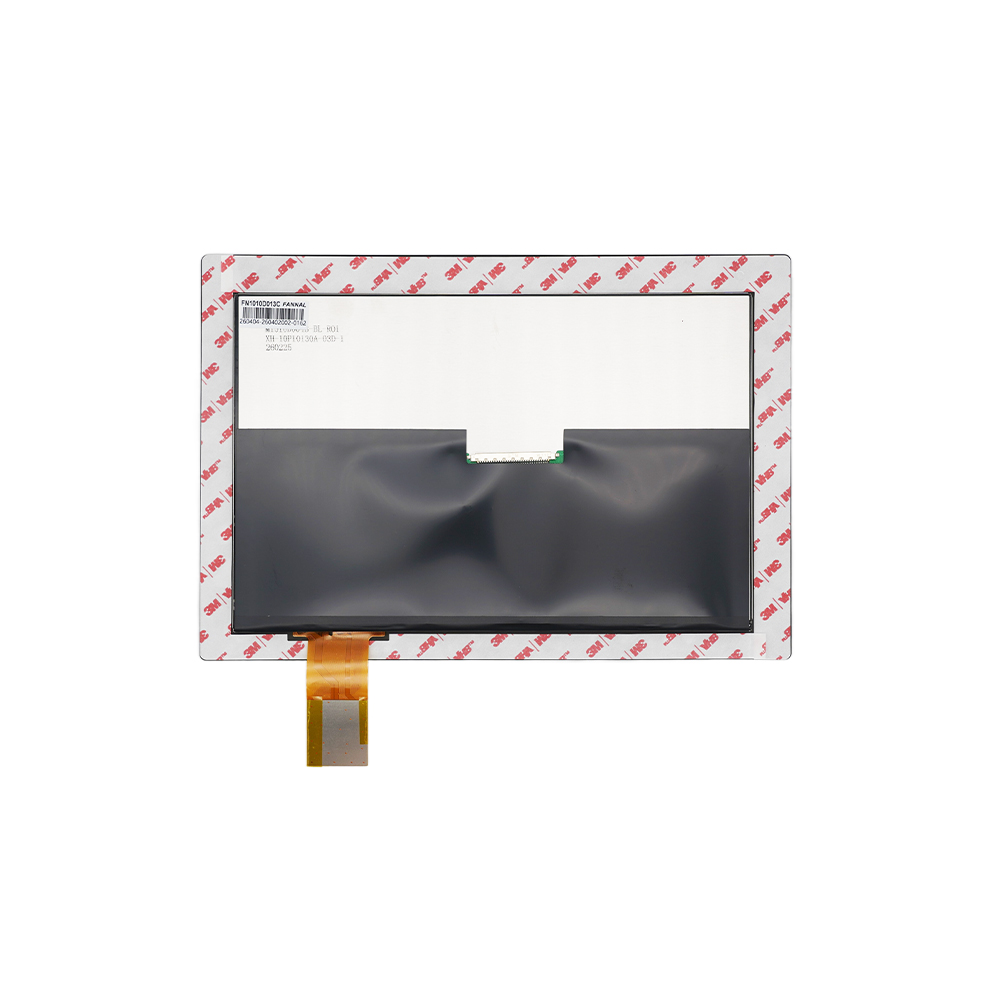

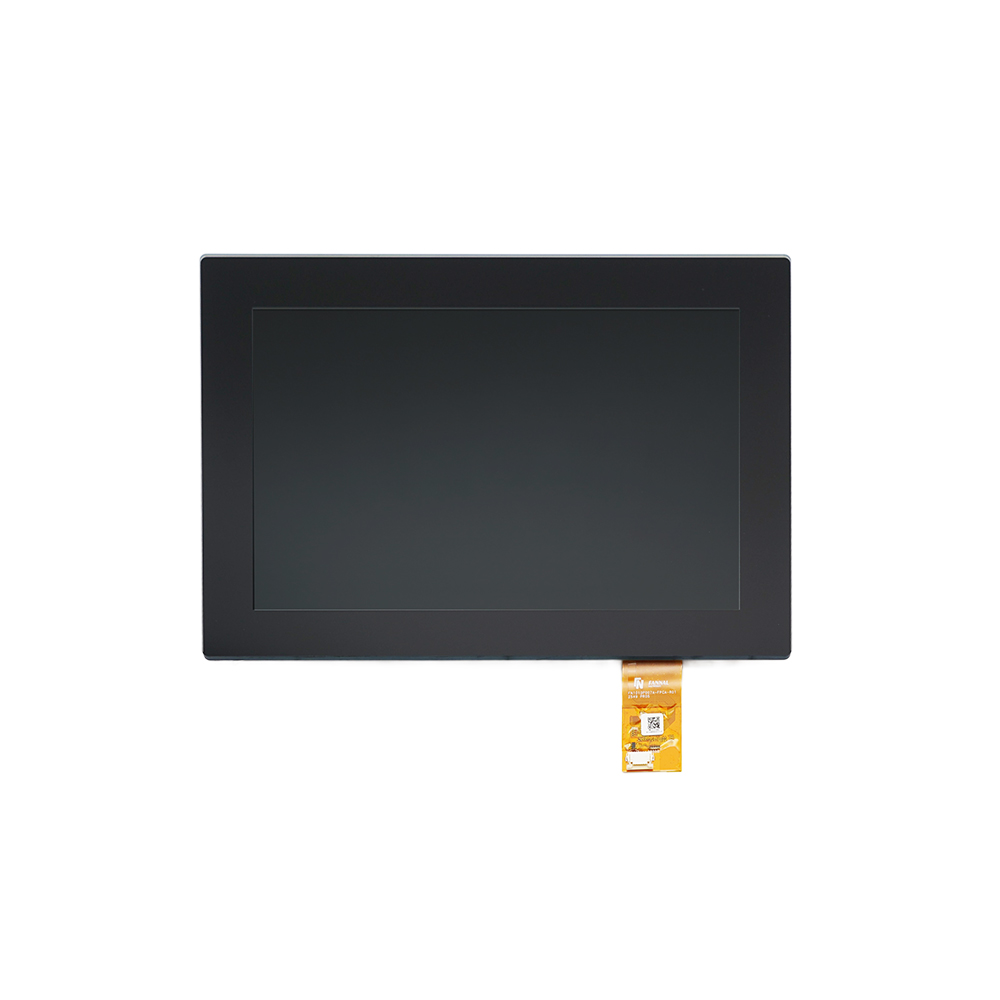

10.1 inch touch display module 1280 x 800 Pixels (with Touch)
US$0.00
亮点
Resolution1280x800
Display interfaceLVDS
Brightness(cd/m²)850
Touch InterfaceIIC
No.of touch5
Display interfaceLVDS
Brightness(cd/m²)850
Touch InterfaceIIC
No.of touch5
Specifications
| Size | 10.1 inches |
|---|---|
| Structure | G+G |
| Touch IC | Microchip |
| Number of Touch Points | 5 |
| Cover Thickness | 3.0 mm |

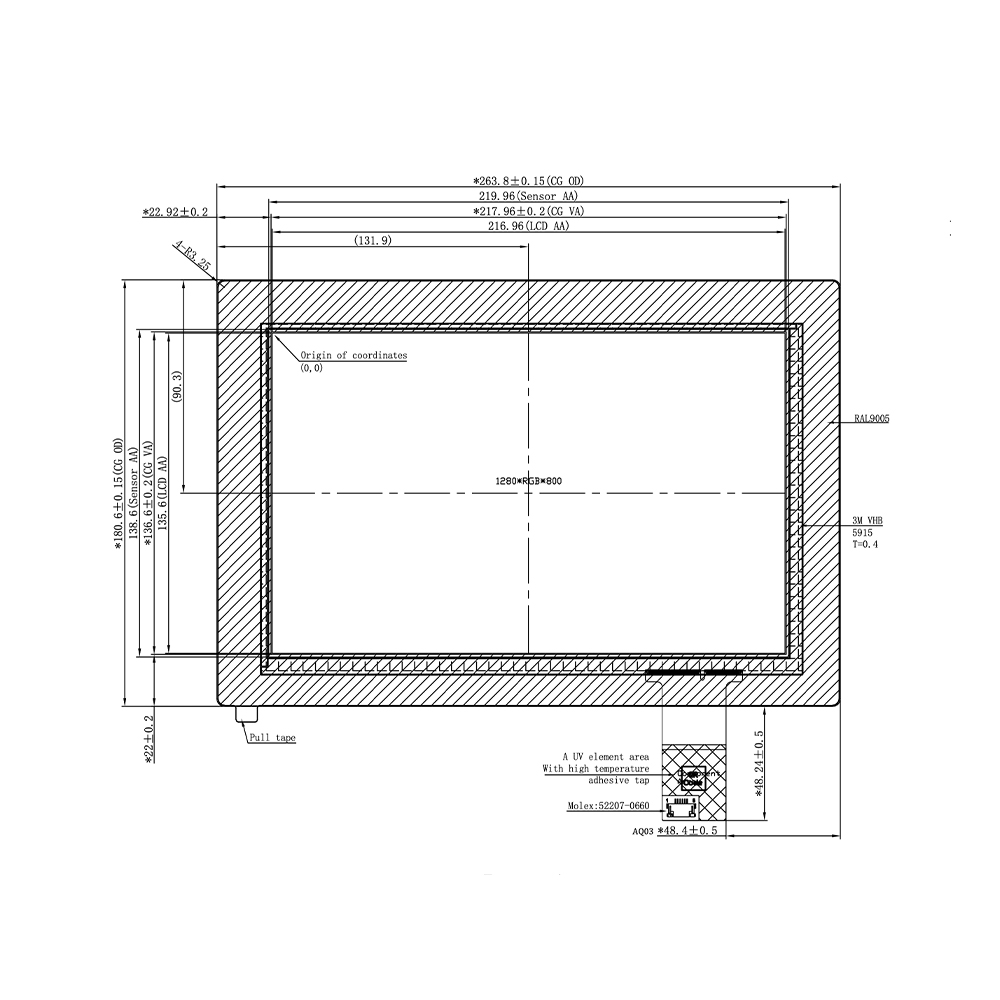

| Cover Outer Dimensions | 263.8 × 180.6 mm |
| Touch Interface | IIC |
| Resolution | 1280 × 800 |
| Display Active Area | 216.96 × 135.6 mm |
| View Direction | All directions |
| Display Interface | LVDS |
| Brightness | 850 cd/m² |
| Operating Temperature | −20°C to +70°C |
| Storage Temperature | −30°C to +80°C |
Security & Compliance by Design
SECO products integrate security functions that enable out-of-the-box compliance with the RED directive [EN18031-1]. Certification documentation is available upon request. Security monitoring, patching and update automation are powered by Clea.
Secure Boot
Built-in Secure Boot to ensure system integrity from the first startup.
OTA Updates
Remote and secure software update distribution for your devices.
Device Monitoring
Continuous monitoring of device status and activity with Clea.
Secure Operating System
Yocto-based OS integration for customizable and secure system builds.
Certified Security
Compliance with EN18031-1 standards for secure and reliable embedded systems.
Docker Technology
Isolated and flexible application management through containerization.
