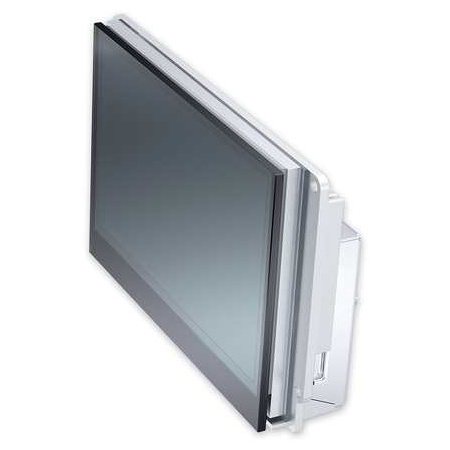

Santino Vision 5 RM MX6

5.0 inch Rear Mount HMI based on NXP i.MX6 processor. (SANTINO LT 5.0 OF PCT)

Contattaci per maggiori informazioni e per preventivi

Cpu

NXP i.MX 6 Family

Grafica

GC320 2D accelerator + GC880 3D accelerator

Connettività

1x 100MbE, 2x USB, RS232, RS485, CAN

Memoria

Soldered on Board DDR3L memory

Descrizione	This Rear Mount HMI enables you to rely on the proven "by Garz & Fricke" quality even in limited conditions. The high-resolution five-inch display with capacitive touch screen guarantees optimized usability. Optionally, the display can be operated in High Brightness mode and thus remains easy to read even in particularly bright ambient light. The proven open-frame design enables easy installation and offers many possibilities for individualisation. Please do not hesitate to contact us.
Cpu	NXP i.MX 6 Family, based on ARM® CORTEX-A9 processors: i.MX6S Solo - Single core up to 1 GHz i.MX6DL Dual Lite - Dual core up to 1 GHz per core
Memoria	1 GB 32 bit DDR3L
Grafica	2D graphics accelerator OpenGL® ES 2.0 3D graphics accelerator with a shader
Risoluzione video	5.0 inch display, resolution 800 x 480, LED lifetime typ. 50k hours typ. 1120 cd/m² brightness P-Cap (Projected Capacitive touch screen), with 2.8mm toughened glass cover, RAL 9005
Memoria di massa	eMMC: 4 GB MLC micro SD slot: 4 bit MMC/SDIO/SD/SDHC
Rete	1x 100MbEthernet
USB	1x USB 2.0 OTG micro-AB 1x USB 2.0 Type-A
Audio	1x speaker (connector), 1 W RMS (8Ω) parallel to internal speaker
Porte seriali	RS-232, RS-485
Dispositivo di alimentazione	9 ÷ 32 VDC
Sistema operativo	Yocto
Temperatura operativa	0°C ÷ +60°C
Dimensioni	134.2 x 83.5 x 33.9 mm

Link	SECO Technical resources Android 7.1 (legacy) Flash-N-Go (legacy) Linux Yocto Rocko (legacy) Linux Yocto Jethro (legacy) Linux Yocto Dunfell and newer (legacy)

Data Sheet	[Datasheet] Santino Vision 5 RM MX6 Rel 1.1
Manual	[Manual] Santino Vision 5 RM MX6 Rev 4 [Manual] HMI Starter Kit Quick Start Guide
Image	[3D] Santino Vision 5 RM MX6
