SOM-COMe-CT6-BT

Computer on Module (CoM) COM Express® Compact Tipo 6 con procesadores Intel® Atom™ E3800 y Celeron® (Codename: Bay Trail) Processors. (CHANDRA - A41)

Available in Industrial Temperature Range

Ficha de datos

Para más información y recibir una cotización, póngase en contacto con nosotros

Contactarnos

Cpu

Intel® Atom™ E3800 and Celeron® families

Gráficas

Integrated Intel® HD Graphics 4000 Series controller

Conectividad

4x USB 3.0; 7x USB 2.0; 4x PCI-e x1 Gen2

Memoria

2x DDR3L SO-DIMM slots, up to 8GB

Datos del producto

Información técnica

Descripción	With dual independent display support, the COM-Express® Type 6 Computer on Module (CoM) with the Intel® Atom™ E3800 and Celeron® families offers broad connectivity options (HDMI, DVI, DP, DP++, LVDS, CRT), and it is also available in an Industrial temperature range and features an optional eMMC disk soldered onboard. SOM-COMe-CT6-BT offers compatibility with all COM Express Type 6 compliant carrier boards.
Cpu	Intel® Atom™ E3845, Quad Core @ 1.91GHz, 2MB Cache, 10W TDP Intel® Atom™ E3827, Dual Core @ 1.75GHz, 1MB Cache, 8W TDP Intel® Atom™ E3826, Dual Core @ 1.46GHz, 1MB Cache, 7W TDP Intel® Atom™ E3825, Dual Core @ 1.33GHz, 1MB Cache, 6W TDP Intel® Atom™ E3815, Single Core @ 1.46GHz, 512KB Cache, 5W TDP Intel® Celeron® J1900, Quad Core @ 2.0GHz, 2MB Cache, 10W TDP Intel® Celeron® N2930, Quad Core @ 1.83GHz, 2MB Cache, 7.5W TDP
Núcleos máx.	4
Memoria	DDR3L non-ECC SO-DIMM slots, 4GB modules supported per each slot E3845, E3827, J1900, N2930: up to 8GB Dual-Channel DDR3L 1333MHz E3826: up to 8GB Dual-Channel DDR3L 1066MHz N2807: up to 4GB Single-Channel DDR3L 1333MHz E3825, E3815: up to 4GB Single-Channel DDR3L 1066MHz
Gráfica	Integrated Intel® HD Graphics 4000 series controller Dual independent display support HW decoding of H.264, MPEG2, MVC, VC1, VP8, MJPEG formats HW encoding of H.264, MPEG2 and MVC formats
Interfaces vídeos	1 x Digital Display Interface (DDI) able to drive HDMI / DVI / DP++ interface Additional DDI, can be switched to manage embedded Display Port or 18 / 24 bit single / dual channel LVDS interface CRT interface
Resolución vídeo	CRT Interface: Up to 2560x1600@60Hz HDMI: Up to 1920x1080p@60Hz Display Port, eDP: Up to 2560x1600@60Hz Optional LVDS interface: Up to 1920x1200@60Hz
Almacenamiento en masa	Optional eMMC drive soldered on board 2 x external SATA channels SD Card interface (multiplexed with GPIO signals)
Trabajo en red	Optional Gigabit Ethernet interface (uses one PCI-e lane)
Usb	7 x USB 2.0 Host ports 4 x USB 3.0 Host ports
Pci	Up to 4 x PCI-e x1 Gen2 lanes
Audio	HD Audio Interface
Puertos de serie	2 x Serial port (TX/RX only, TTL interface)
Otras interfaces	2 x Express Card interfaces I2C bus LPC Bus SM Bus 4 x GPI, 4 x GPO Thermal / FAN management WatchDog timer Power management signalsv
Alimentación eléctrica	+12VDC ± 10% and + 5VSB (optional)
Sistema operativo	Microsoft® Windows 7 (32/64 bit) Microsoft® Windows 8 (32/64 bit) Microsoft® Windows 8.1 (32/64 bit) Microsoft® Windows 10 (32/64 bit) Microsoft® Windows 10 IoT Microsoft® Windows Embedded Standard 7 (32/64 bit) Linux (32/64 bit) Yocto

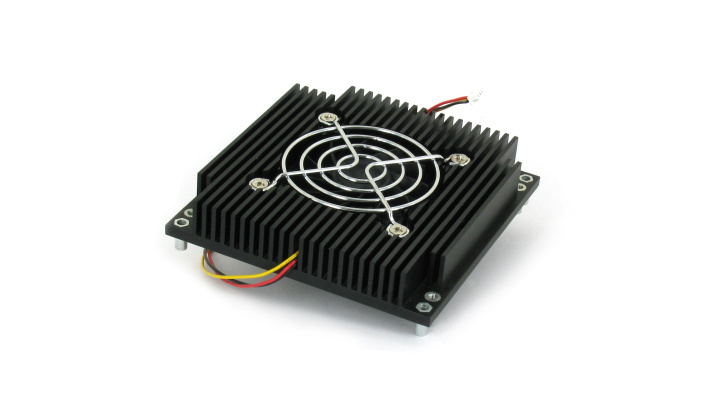

Temperatura de funcionamiento	0°C ÷ +60°C (commercial version) -40°C ÷ +85°C (industrial version) *Measured at any point of SECO standard heastpreader for this product, during any and all times (including start-up). Actual temperature will widely depend on application, enclosure and/or environment. Upon customer to consider application-specific cooling solutions for the final system to keep the heatspreader temperature in the range indicated.
Dimensiones	95 x 95 mm (3.74” x 3.74”)

Software

BIOS	[Bios] - Release version 1.19
Tools and Documents	[Tools and Documents] - Flash Tools
EAPI	[Embedded application programming interface] - Release version 1.20.19
BSP	[BSP] - Package version 3.2.0 MR2 V1.0 [BSP] - Yocto Pyro [Images] - Sample images (sato and minimal) (pyro 64bit)
Windows 8	[I/O drivers - 32/64 bit] - Driver version 545879 [TXE installer only for Nxxx & Jxxx - 32/64 bit] - Driver version 1.1.0.1064 [LAN - 32 bit] - Driver version 19.1 [LAN - 64 bit] - Driver version 19.1 [Video - 32 bit] - Driver version 15.33.20.3574 [Video - 64 bit] - Driver version 15.33.20.64.3574
Windows 8.1	[I/O drivers - 32/64 bit] - Driver version MR1 [Chipset - 32/64 bit] - Driver version 10.1.1.8 [Video - 32 bit] - Driver version 15.33.19.3540 [Video - 64 bit] - Driver version 15.33.19.3540 [LAN - 32 bit] - Driver version 19.1 [LAN - 64 bit] - Driver version 19.1 [TXE installer - 32/64 bit] - Driver version 1.0.5.1120
Windows Embedded Standard 7	[Chipset - 32/64 bit] - Driver version 10.1.1.8 [I/O drivers - 32/64 bit] - Driver version MR3 [Video - 32 bit] - Driver version 36.15.0.1127 [Video - 64 bit] - Driver version 37.15.0.1127 [USB 3.0 eXtensible Host Controller - 32/64 bit] - Driver version 4.0.0.27 [LAN - 32 bit] - Driver version 19.1 [LAN - 64 bit] - Driver version 19.1 [TXE installer - 32/64 bit] - Driver version 1.0.5.1120
Windows 7	[Chipset - 32/64 bit] - Driver version 10.1.1.8 [Video - 32 bit] - Driver version 36.15.0.1127 [Video - 64 bit] - Driver version 37.15.0.1127 [USB 3.0 eXtensible Host Controller - 32/64 bit] - Driver version 4.0.0.27 [LAN - 32 bit] - Driver version 19.1 [LAN - 64 bit] - Driver version 19.1 [TXE installer - 32/64 bit] - Driver version 1.0.5.1120
Windows 10	[Chipset - 32/64 bit] - Driver version 10.1.1.8 [MBI(Sideband Fabric Device) only for Nxxx & Jxxx - 32/64 bit ] - Driver version 604.10125.2655.573 [Serial I/O] - Driver Gold edition [LAN - 32 bit] - Driver version 23.5.1 [LAN - 64 bit] - Driver version 23.5.1 [TXE installer - 32/64 bit] - Driver version 1.0.5.1120 [Video - 32 bit] - Driver version 15.33.19.3540 [Video - 64 bit] - Driver version 15.33.19.3540

Documentación

Data Sheet	[Datasheet] SOM-COMe-CT6-BT Rel 2.5
Manual	[Manual] CHANDRA Rel 1.0 [Manual] CHANDRA_Product Change Notification
Image	[Picture] CHANDRA_back [Picture] CHANDRA_front

Part Number

Prices hereunder are valid for SAMPLES (purchase limited to 3pcs).
If you would like to know prices for higher volumes, please contact us.

Elementos de artículos agrupados
MA41-3030-2000-I1-V	Descripción número de pieza COMe-A41-CT6 w/Bay Trail-I E3815 @1.46 GHz SC - eMMC 16GB - LVDS - Ind. Temp	Contactarnos
MA41-4020-2000-I1-V	Descripción número de pieza COMe-A41-CT6 w/Bay Trail-I E3825 @1.33 GHz DC - eMMC 8GB - LVDS - Ind. Temp	Contactarnos
