SOM-COMe-BT6-CFL-H

Módulo COM Express® 3.0 Basic Tipo 6 con procesadores Intel® Core™/ Xeon® (Codename: Coffee Lake), Core™ / Xeon® / Celeron® (Codename: Coffee Lake Refresh) Processors. (OBERON - C08)

Ficha de datos

Wiki

Para más información y recibir una cotización, póngase en contacto con nosotros

Contactarnos

Cpu

8th Gen Core™/Xeon® (Coffee Lake) & 9th Gen Core™/ Xeon® /Celeron® CPUs (Coffee Lake Refresh)

Gráficas

Intel® UHD Graphics 630/P630 architecture, up to 48 Execution Units

Conectividad

4x USB 3.0; 8x USB 2.0; 8x PCI-e x1 Gen3; PEG x16 Gen3

Memoria

Two DDR4 SO-DIMM Slots supporting DDR4-2666 ECC Memory, up to 64GB

Datos del producto

Información técnica

Descripción	SOM-COMe-BT6-CFL-H is a COM Express® Basic Type 6 Computer on Module (CoM) with Intel® 8th generation Core™/ Xeon® (formerly Coffee Lake H) and 9th generation Core™ / Xeon® / Celeron® (formerly Coffee Lake Refresh) CPUs reaching a maximum of 12 threads. Mounting the Intel® Gen9 LP graphic core architecture, OBERON can manage up to 3 independent displays at once, with a resolution up to 4096x2304 @60Hz, 24bpp. The module also embeds an H.265 / HEVC hardware transcoder - a peculiarity that, combined with the outstanding performance and the compatibility with multiple video interfaces, makes it an ideal platform for projects operating in the field of gaming, digital signage, infotainment, and HMI.
Cpu	Intel® 8th generation Core™ / Xeon® (formerly Coffee Lake) CPUs: Intel® Core™ i7-8850H, Six Core @ 2.6GHz (4.3GHz Max 1 Core Turbo), 9MB Cache, 45W TDP (35W cTDP), with HyperThreading Intel® Core™ i5-8400H, Quad Core @ 2.5GHz (4.2GHz Max 1 Core Turbo), 8MB Cache, 45W TDP (35W cTDP), with HyperThreading Intel® Core™ i3-8100H, Quad Core @ 3.0GHz, 6MB Cache, 45W TDP (35W cTDP) Intel® Xeon® E-2176M, Six Core @ 2.7GHz (4.4GHz Max 1 Core Turbo), 12MB Cache, 45W TDP (35W cTDP), with HyperThreading Intel® 9th generation Core™ / Xeon® / Celeron® (formerly Coffee Lake Refresh) CPUs: Intel® Xeon® E-2276ME Six Core @2.8GHz (4.5GHz Max 1 Core Turbo), 12MB Cache, 45W TDP (35W cTDP), with Hyperthreading Intel® Xeon® E-2276ML Six Core @2.0GHz (4.2GHz Max 1 Core Turbo), 12MB Cache, 25W TDP, with Hyperthreading Intel® Xeon® E-2254ME Quad Core @2.6GHz (3.8GHz Max 1 Core Turbo), 8MB Cache, 45W TDP (35W cTDP), with Hyperthreading Intel® Xeon® E-2254ML Quad Core @1.7GHz (3.5GHz Max 1 Core Turbo), 8MB Cache, 25W TDP, with Hyperthreading Intel® Core™ i7-9850HE, Six Core @2.7GHz (4.4GHz Max 1 Core Turbo), 9MB Cache, 45W TDP (35W cTDP), with Hyperthreading Intel® Core™ i7-9850HL, Six Core @1.9GHz (4.1GHz Max 1 Core Turbo), 9MB Cache, 25W TDP, with Hyperthreading Intel® Core™ i3-9100HL, Quad Core @1.6GHz (2.9GHz Max 1 Core Turbo), 6MB Cache, 25W TDP Intel® Celeron® G4930E, Dual Core @2.4GHz, 2MB Cache, 35W TDP Intel® Celeron® G4932E, Dual Core @1.9GHz, 2MB Cache, 25W TDP
Núcleos máx.	6
Memoria	Two DDR4 SO-DIMM Slots supporting DDR4-2666 Memory, up to 64GB ECC DDR4 memory modules supported only with Xeon®, Core™ i3, Pentium® and Celeron® CPUs combined with CM246 PCH
Gráfica	Intel® UHD Graphics 630/P630 architecture, up to 48 Execution Units Up to 3 independent displays supported DirectX 12, OpenGL 4.5, and OpenCL 2.1 support HW accelerated video decode MPEG2, VC1/WMV9, AVC/H.264, VP8, JPEG/MJPEG, HEVC/H.265 (8-/10-bit), VP9 HW accelerated video encode MPEG2, AVC/H.264, VP8, JPEG, HEVC/H.265, VP9
Interfaces vídeos	Up to 3 x Digital Display Interfaces (DDIs), supporting DP 1.2, DVI, HDMI 1.4 eDP 1.4 or Single/Dual-Channel 18-/24-bit LVDS interface or LVDS + VGA interface
Resolución vídeo	Up to 3 x Digital Display Interfaces (DDIs), supporting DP 1.2, DVI, HDMI 1.4 eDP 1.4 or Single/Dual-Channel 18-/24-bit LVDS interface or LVDS + VGA interface
Almacenamiento en masa	4 x S-ATA Gen3 Channels SD interface (shared with GPI/Os)
Trabajo en red	Gigabit Ethernet interface Intel® I219-LM GbE Controller
Usb	4 x USB 3.0 Host ports 8 x USB 2.0 Host ports
Pci	8 x PCI-e x 1 Gen3 lanes PCI-express Graphics (PEG) Gen3 x16
Audio	HD Audio Interface
Puertos de serie	2 x UARTs
Otras interfaces	SPI, I2C, SM Bus, Thermal Management, FAN management LPC bus Optional TPM 2.0 on-board LID#/SLEEP#/PWRBTN#, Watchdog 4 x GPI, 4 x GPO (pins shared with SD interface)
Alimentación eléctrica	+12VDC ± 10% and + 5VSB (optional)
Sistema operativo	Microsoft® Windows 10 Linux
Temperatura de funcionamiento	0°C ÷ +60 °C (Commercial version) *Measured at any point of SECO standard heastpreader for this product, during any and all times (including start-up). Actual temperature will widely depend on application, enclosure and/or environment. Upon customer to consider application-specific cooling solutions for the final system to keep the heatspreader temperature in the range indicated.
Dimensiones	125 x 95 mm (Com Express™ Basic Form factor, Type 6 pinout)

Software

Enlace	SECO Technical Resources

Documentación

Data Sheet	[Datasheet] SOM-COMe-BT6-CFL-H Rel 1.6
Manual	[Manual] OBERON Rel 1.0 [Manual] OBERON_Product Change Notification
Image	[Picture] OBERON_front

Part Number

Elementos de artículos agrupados
MC08-9000-0100-C1-V	Descripción número de pieza COMe-C08-BT6 w/Intel i7-9850HE Hexa core @2.6GHz (4.6GHZ in Turbo Boost), 12MB Chace, 45W TDP + ChipsetQM370 (AMT), EDP 2line;VGA; DP++ (DDI1); DP++ (DDI2); HDMI (DDI3) - Comm. Temp	Contactarnos
MC08-I000-0200-C1-V	Descripción número de pieza COMe-C08-BT6 w/Intel® Core™ i7-9850HL , Hexa Core @1.9GHz, 9MB Cache, 25W TDP + Chipset QM370 + EDP 4l; VGA; DP++ (DDI1); DP++ (DDI2); DP++ (DDI3) - Comm.Temp	Contactarnos
MC08-M000-1400-C1-V_	Descripción número de pieza COMe-C08-BT6 w/Intel Celeron G4930E, Dual Core @2.4GHz, 2MB Cache, 35W TDP + Chipset HM370, TPM 2.0, LVDS; 3x DP++ - Comm.Temp	Contactarnos
MC08-U000-1400-C1-V	Descripción número de pieza COMe-C08-BT6 w/Intel Celeron G4930E, Dual Core @2.4GHz, 2MB Cache, 35W TDP + Chipset HM370, TPM 2.0, LVDS; DP++ (DDI1); DP++ (DDI2); DP++ (DDI3) - Comm.Temp	Contactarnos

Visita nuestra tienda

Compra y recibe los productos SECO de inmediato

Ve a la tienda

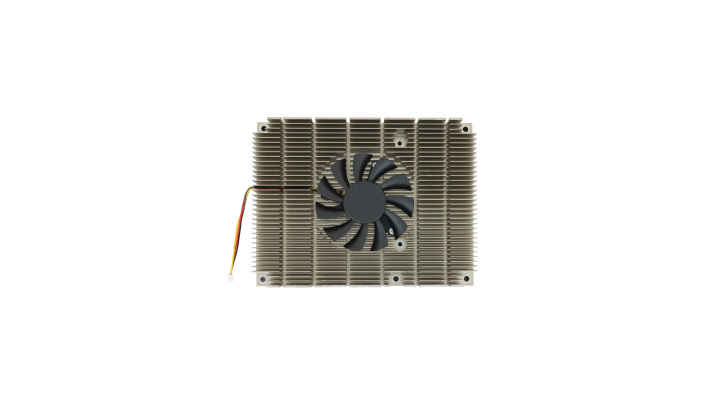

Accessories
