zh FN0500P083A
FN0500P083A
In stock
5 Inch G+G Capacitive Touch Panel with IIC interface
0,00 US$
Aspectos destacados
Touch screen structureG+G
Cover Thickness (mm)1.1
No.of touch5
Touch InterfaceIIC
Cover Thickness (mm)1.1
No.of touch5
Touch InterfaceIIC
Specifications
| Size | 5.0 inches |
|---|---|
| Structure | G+G |
| Cover Thickness | 1.1 mm |

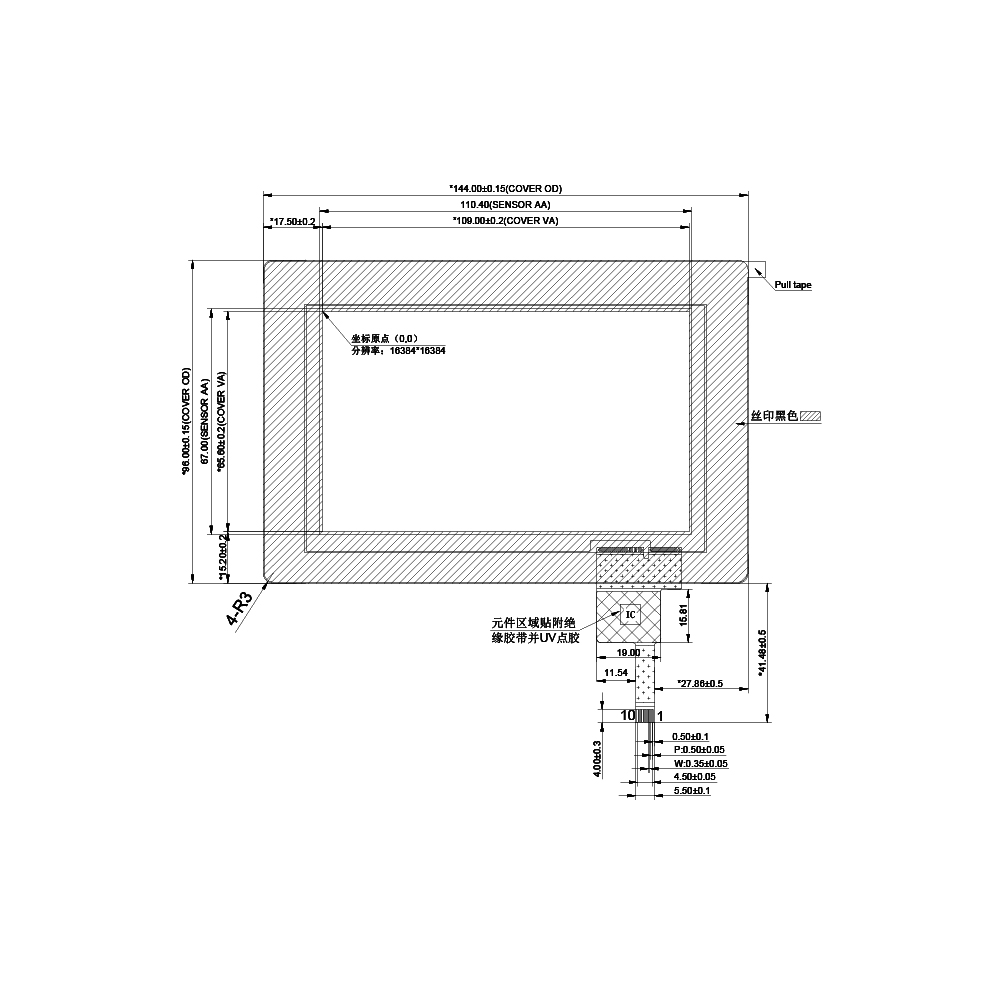

| TP Viewing Area | 109.00 × 65.60 mm |
| Cover Outer Dimensions | 144.00 × 96.00 × 2.10 mm |
| Sensor Outer Dimensions | 110.4 × 67 × 0.7 mm |
| Interface | IIC |
| Number of Touch Points | 5 |
| CTP IC | Ilitek |
| Operating Temperature | −30°C to +80°C |
| Storage Temperature | −30°C to +80°C |
| Matching TFT | Can be chosen |
