zh FN0350D022A
FN0350D022A
In stock

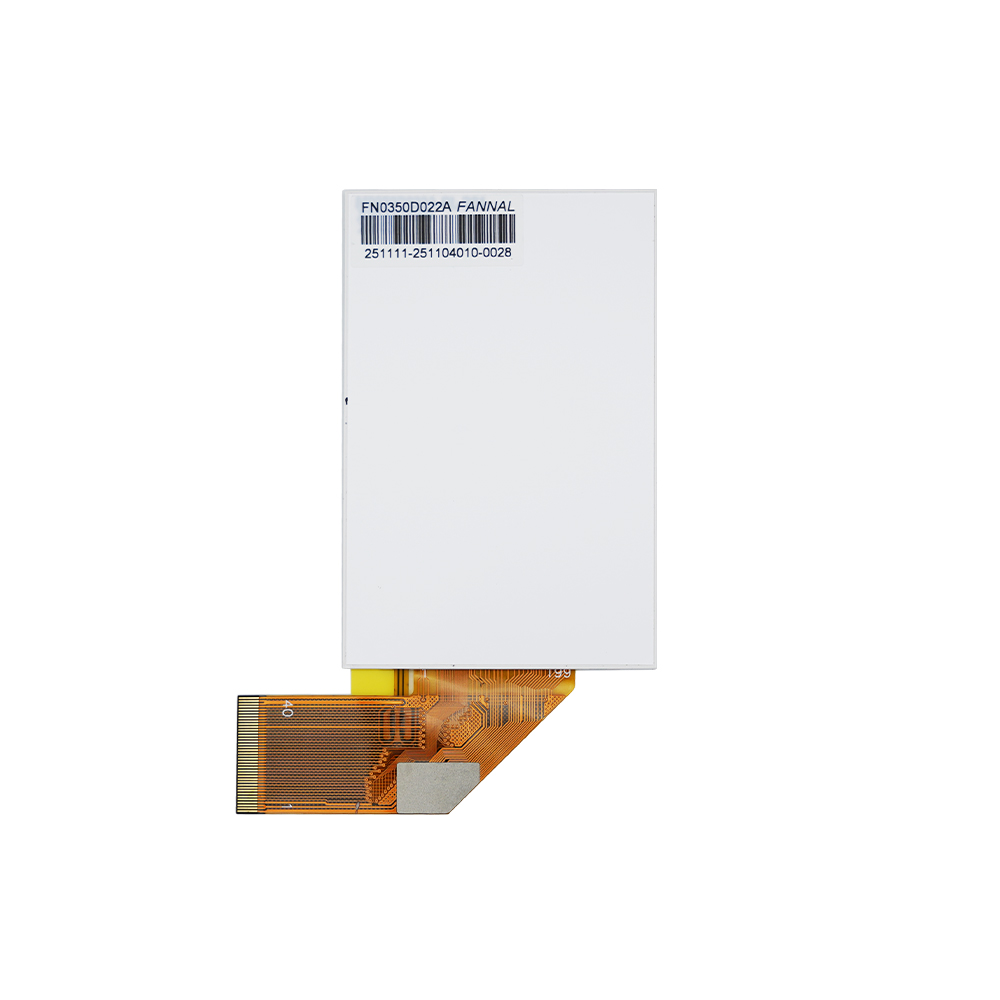

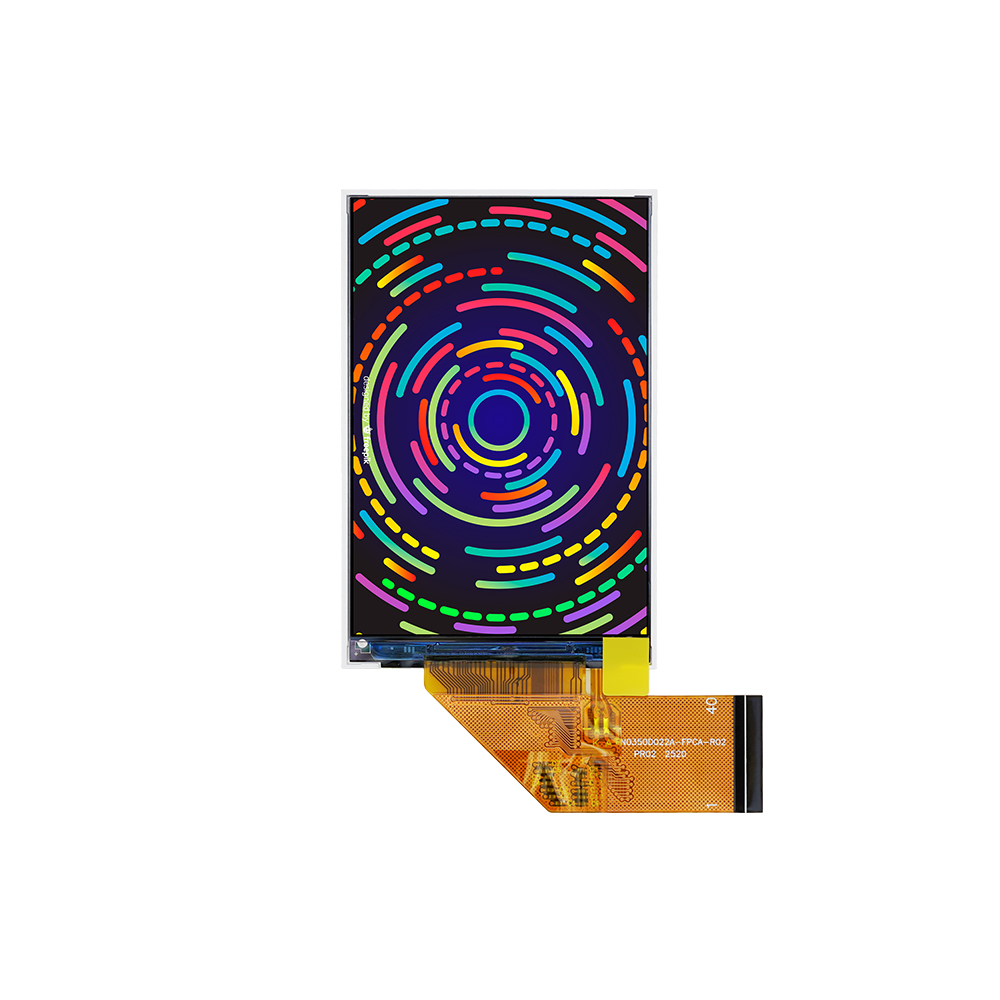

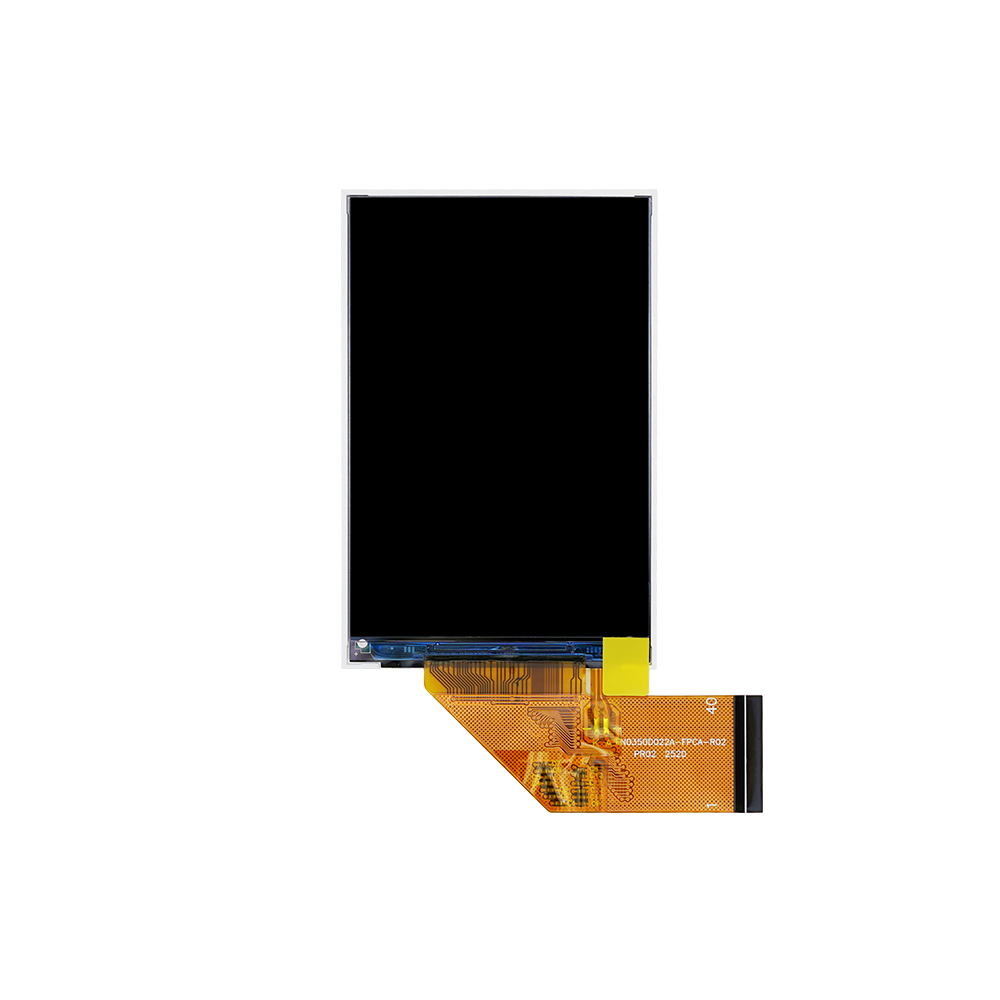

3.5 Inch IPS TFT LCD Module with MCU, SPI and RGB Interface
0,00 US$
Aspectos destacados
Resolution320x480
Display AA (mm)48.96×73.44
View DirectionAll
Display InterfaceMCU/RGB/SPI
Brightness (cd/m2)350
Display AA (mm)48.96×73.44
View DirectionAll
Display InterfaceMCU/RGB/SPI
Brightness (cd/m2)350
Specifications
| LCD Size | 3.5 inches |
|---|---|
| Resolution | 320 × 480 |

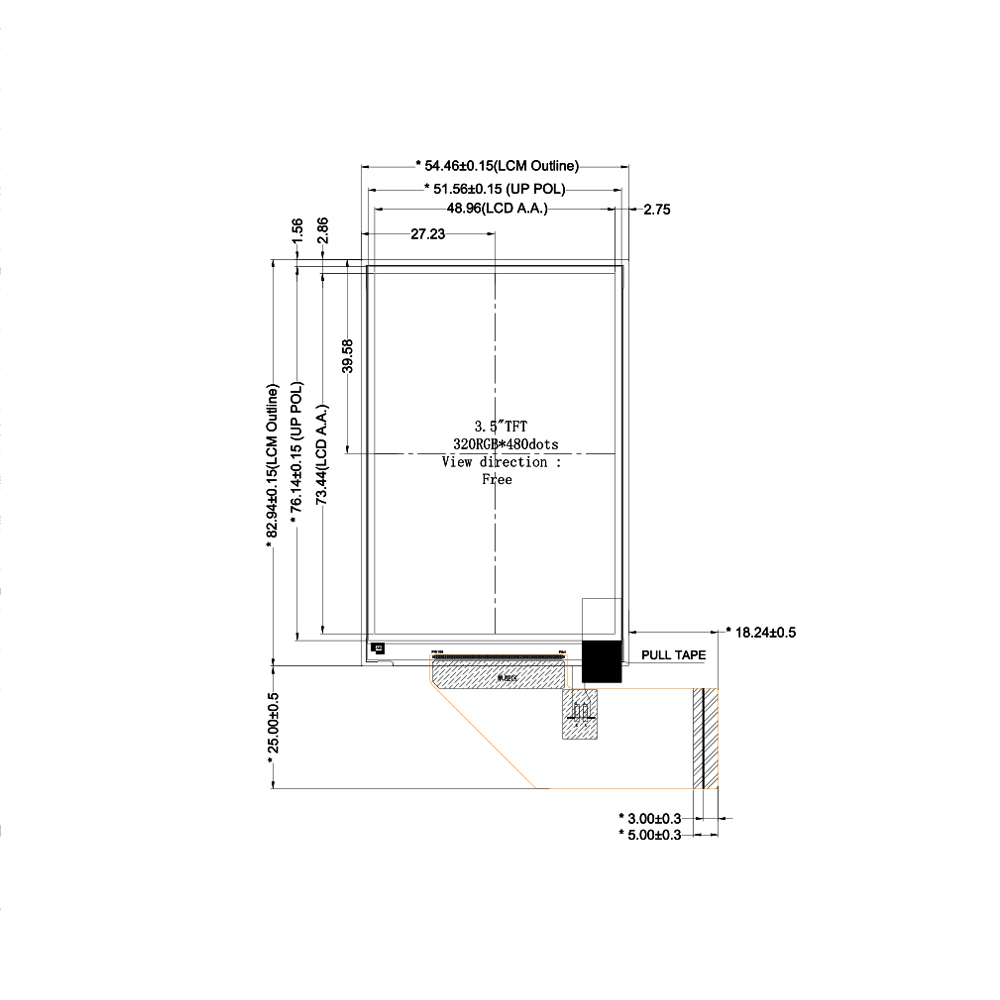

| Active Area | 48.96 × 73.44 mm |
| Module Size | 54.46 × 82.94 × 2.2 mm |
| Interface | MCU / RGB / SPI |
| View Direction | All directions |
| Brightness | 350 cd/m² typical |
| Operating Temperature | −20°C to +70°C |
| Storage Temperature | −30°C to +80°C |
| Matching CTP | Can be chosen |
