SBC-S984-MX6

In stock

SBC with NXP i.MX 6 Processor (VIKTORIA-S984)

Request a quote

$0.00

Datasheet

Click to download

Manual

Click to download

Dev Center

Visit page

Clea OS

Visit page

View all resources

Highlights

CPUSingle-, Dual- and Quad- Core (ARM Cortex™A9 Cores)

Graphics2D/3D dedicated graphics processors

MemoryUp to 2GB DDR3L on-board

SBC-S984-MX6 is a Single Board Computer (only 80 x 67 mm) based on the i.MX 6 Multimedia Applications platform from NXP, a multimedia processor integrating a multicore Cortex™ A9 ARM Core (up to Quad Core processors), ideal for applications requiring multimedia capabilities and/or high levels of parallel computing, maintaining advantages offered by low-power consuming ARM architecture in an extremely reduced space.

Security & Compliance by Design

SECO products integrate security functions that enable out-of-the-box compliance with the RED directive [EN18031-1]. Certification documentation is available upon request. Security monitoring, patching and update automation are powered by Clea.

Secure Boot

Built-in Secure Boot to ensure system integrity from the first startup.

OTA Updates

Remote and secure software update distribution for your devices.

Device Monitoring

Continuous monitoring of device status and activity with Clea.

Secure Operating System

Yocto-based OS integration for customizable and secure system builds.

Certified Security

Compliance with EN18031-1 standards for secure and reliable embedded systems.

Docker Technology

Isolated and flexible application management through containerization.

Application Hub

Discover the applications compatible with this product available on the SECO Application Hub: ready-to-use solutions to accelerate the development and deployment of intelligent features.

Machine Alert Assistance with Operator Recognition

HMI system that uses AI to recognize operators during alerts and show personalized troubleshooting instructions.

Industrial Safety Surveillance

People Counter

Lightweight real-time people counting model based on quantized YOLOX, optimized for edge devices using LiteRT (TensorFlow Lite) .

Industrial Safety Surveillance

PoseNet for Multi-Person Pose Detection

Lightweight and quantized PoseNet model for real-time multi-person pose estimation on edge hardware.

Industrial Safety Surveillance

HRNet for Human Pose Estimation

High-resolution neural network for accurate keypoint detection in human pose estimation tasks.

Industrial Safety Surveillance

Technical Specifications

Description	SBC-S984-MX6 is a Single Board Computer (only 80 x 67 mm) based on the i.MX 6 Multimedia Applications platform from NXP, a multimedia processor integrating a multicore Cortex™ A9 ARM Core (up to Quad Core processors), ideal for applications requiring multimedia capabilities and/or high levels of parallel computing, maintaining advantages offered by low-power consuming ARM architecture in an extremely reduced space.
CPU Description	NXP i.MX 6 Family, based on ARM® Cortex-A9 processors - i.MX 6S Solo - Single core up to 1 GHz - i.MX 6DL Dual Lite - Dual core up to 1 GHz per core - i.MX 6D Dual - Dual core up to 1 GHz per core - i.MX 6Q Quad - Quad core up to 1 GHz per core
Max Cores	4
Memory Description	Up to 2 GB DDR3L on-board (up to 1 GB with i.MX 6S)
Graphics Description	Dedicated 2D hardware accelerator Dedicated 3D hardware accelerator, supports OpenGL® ES2.0 3D Dedicated vector graphics accelerator supports OpenVG™ (only i.MX 6D and i.MX 6Q) Supports up to 3 independent displays with i.MX 6D and i.MX 6Q Supports 2 independent displays with i.MX 6DL and i.MX 6S
Video Interfaces Description	1x LVDS dual-channel or 2x LVDS single-channel 18- / 24-bit interface HDMI interface Video input port / camera connector (only with PCB rev. C or higher)
Video Resolution Description	LVDS, up to 1920x1200 HDMI, up to 1080p
Mass Storage Description	On-board eMMC drive, up to 8 GB Mini SATA Half-size slot (shared with Mini PCIe)
Networking Description	Gigabit Ethernet connector
USB Description	3x standard USB 2.0 Type A 1x USB OTG on micro-AB connector Internal USB for optional Wi-Fi module
PCI Description	Mini PCIe slot, shared with mSATA (only PCIe 1.1 and Gen2 are supported)
Audio Description	AC’97 audio codec Mic In, Line out internal pin header connector
Serial Ports	1x RS-232 serial port TTL debug UART (Tx, RX only) CAN interface internal connector
Other Interfaces	I2C touch connector Internal connector for power and reset buttons

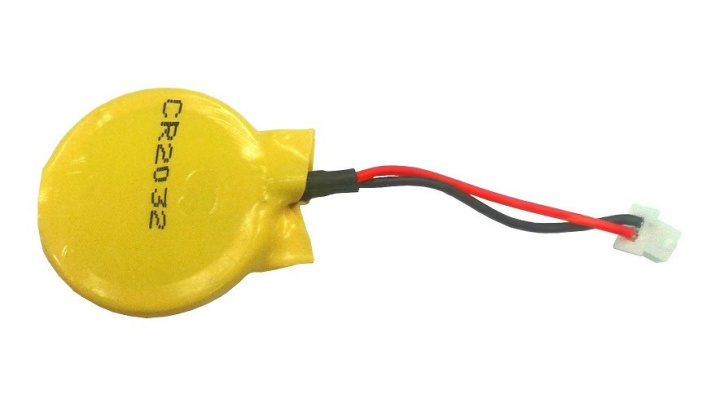

Power Supply	+12 VDC ± 10% Embedded additional RTC circuitry for lowest power consumption Optional RTC battery with lead cable and connector
Operating Temperature Description	0°C to +70 °C (commercial version) -40°C to +85°C (industrial version) *Measured at any point of SECO standard heastpreader for this product, during any and all times (including start-up). Actual temperature will widely depend on application, enclosure and/or environment. Upon customer to consider application-specific cooling solutions for the final system to keep the heatspreader temperature in the range indicated.
Dimensions	80 x 67 mm

Part Number

PN-984
