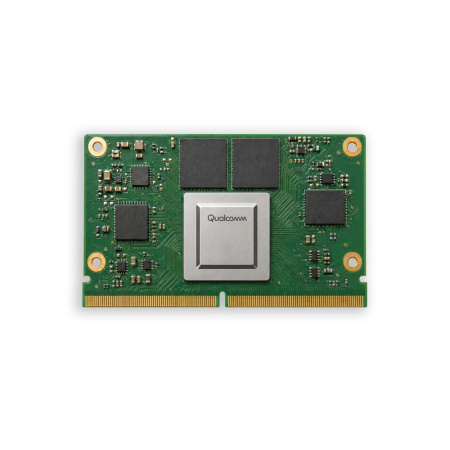

SOM-SMARC-Dragonwing-IQ8
ハイライト
Dragonwing IQ8 QCS8275-0-AC
AI CapabilitiesQualcomm® Hexagon™ Embedded NPU up to 40 TOPS
MemoryUp to 32GB LPDDR5/LPDDR5X soldered memory
Connectivity1x Gigabit Ethernet port
1x 2.5 Gigabit Ethernet port
SMARC® Rel. 2.1.1 module with Qualcomm Dragonwing™ IQ8 Applications Processors. (F86)
当社のキットをご覧ください
Physical AIに最適化
SOM-SMARC-Dragonwing-IQ8はPhysical AIシステムを駆動するために設計されています。省電力なAIアクセラレーションをAMR、協働ロボット、ドローン、インテリジェントデバイスにもたらし、知覚・センサーフュージョン・オンボード推論に対応。プロトタイプから産業展開まで支えます。
詳細はこちら
Security & Compliance by Design
SECO products integrate security functions that enable out-of-the-box compliance with the RED directive [EN18031-1]. Certification documentation is available upon request. Security monitoring, patching and update automation are powered by Clea.
Secure Boot
Built-in Secure Boot to ensure system integrity from the first startup.
OTA Updates
Remote and secure software update distribution for your devices.
Device Monitoring
Continuous monitoring of device status and activity with Clea.
Secure Operating System
Yocto-based OS integration for customizable and secure system builds.
Certified Security
Compliance with EN18031-1 standards for secure and reliable embedded systems.
Docker Technology
Isolated and flexible application management through containerization.
Application Hub
SECO Application Hubで利用可能な、この製品と互換性のあるアプリケーションをご覧ください。インテリジェント機能の開発と展開を加速するためのすぐに使用できるソリューション。
Machine Alert Assistance with Operator Recognition
HMI system that uses AI to recognize operators during alerts and show personalized troubleshooting instructions.
People Counter
Lightweight real-time people counting model based on quantized YOLOX, optimized for edge devices using LiteRT (TensorFlow Lite) .
PoseNet for Multi-Person Pose Detection
Lightweight and quantized PoseNet model for real-time multi-person pose estimation on edge hardware.
HRNet for Human Pose Estimation
High-resolution neural network for accurate keypoint detection in human pose estimation tasks.
CPU Description
|
Dragonwing IQ8 QCS8275-0-AA Dragonwing IQ8 QCS8275-0-AC |
|---|---|
Memory Description
|
Up to 32GB LPDDR5/LPDDR5X soldered memory |
Graphics Description
|
Qualcomm® Adreno™ 623 GPU up to 877MHz |
Video Interfaces Description
|
2 independent displays DP 1.4 4K@120Hz LVDS Single/Dual Channel, max resolution 1920x1200@60Hz or DSI 4-lane interface 4K@120Hz, factory option 1x MIPI-CSI 2-lane interface with dedicated I2C interface 2x MIPI-CSI 4-lane interface with dedicated I2C interface |
Video Resolution Description
|
Up to 2x 4K120Hz |
|
Mass Storage Description
|
UFS 3.1 Gen4 2-lane drive soldered on-board, up to 1TB, boot device SDIO interface, boot device |
Networking Description
|
1x Gigabit Ethernet port 1x 2.5 Gigabit Ethernet port |
USB Description
|
Up to 5x USB 2.0 2x USB SS 5Gbps or 1x USB SS 10Gbps, factory option |
PCI Description
|
1x PCI-e x4 Gen4 or 2x PCI-e x2 Gen4, factory option |
Audio Description
|
2x I2S Audio interface |
Serial Ports
|
2x 4-wire UART 2x 2-wire UART |
Other Interfaces
|
Boot SPI General purpose SPI QSPI interface Power Management I2C Bus, SMBus General Purpose I2C Bus 8x GPIOs JTAG signals on dedicated connector ACPI signals |
|
Security
|
TPM 2.0, FIPS 140-3 compliant, SLB9678 |
|
Power Supply
|
+5VDC ±5% |
Operating System
|
Clea OS, Yocto Linux Compatibility with Arduino |
Operating Temperature Description
|
Commercial Temperature Range: 0°C to +60°C Industrial Temperature Range: -40°C to +85°C |
Dimensions
|
82 x 50 mm |
